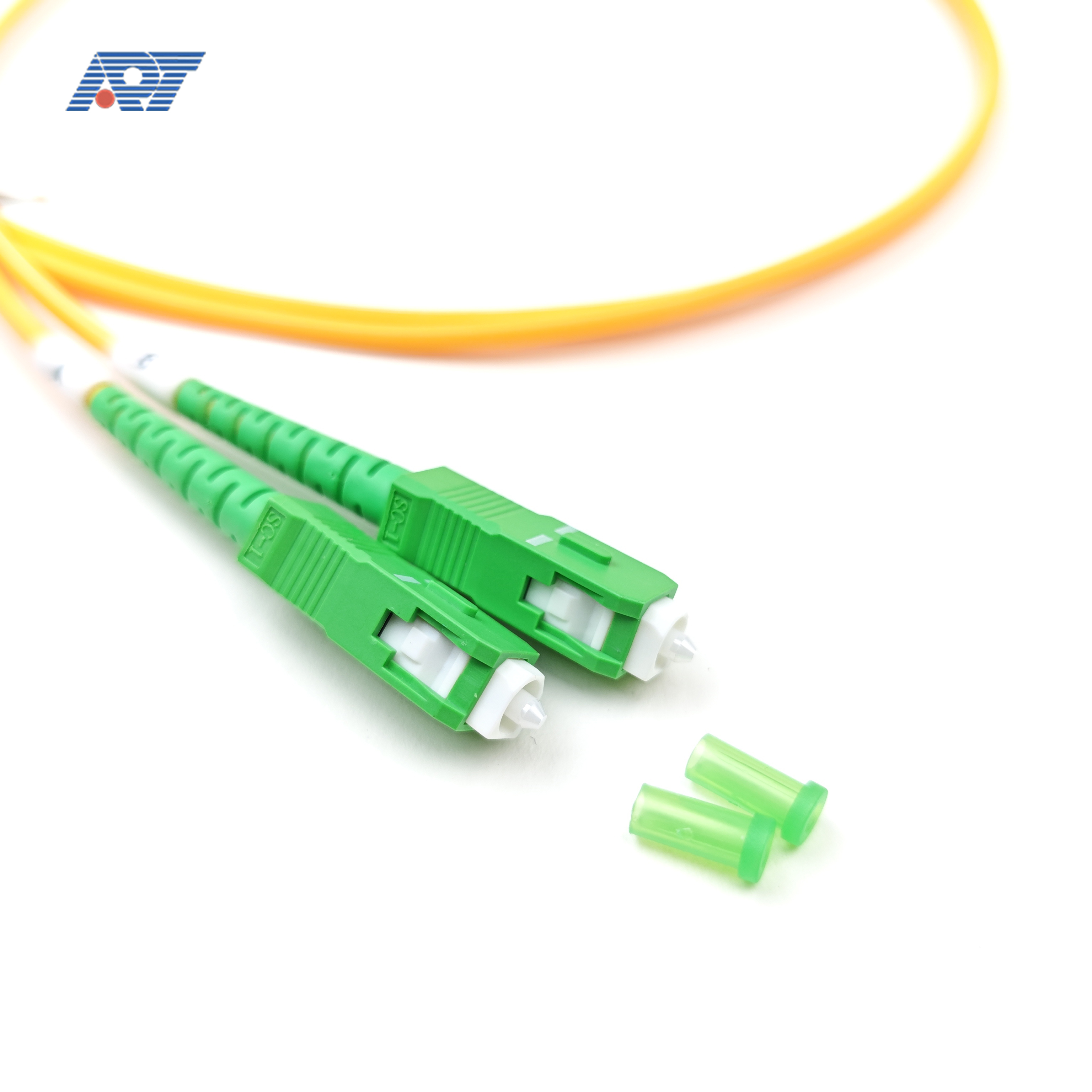

Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber
Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber

Patchcord-SC APC to SC APC Simplex Single Mode PVC (LSZH) 3.0*2mm Fiber

The fiber optic connector precisely connects the two end faces of the fiber. The most important thing is to align the axes of the two fibers so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent. The impact on the system is minimized due to its involvement in the optical link.

Introduction
1.Quick Details

The fiber optic connector precisely connects the two end faces of the fiber. The most important thing is to align the axes of the two fibers so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber to the maximum extent. The impact on the system is minimized due to its involvement in the optical link.

Tech data

Item

Unit

Data

Name

-

Patchcord-SCAPC-SCAPC-SX-G652D-PVC -3.0-3M

PN

-

APT-TX-SCAPC-SCAPC-SX-D2-PVC-3.0-3M

Fiber Type



G652D/G657A1/G657A2

Output meterial



PVC/LSZH

Wavelength

nm

1310/1550

Insertion loss

dB

≤0.3

Return loss

dB

≥50(PC,UPC);≥60(APC)

Repeatable

dB

≤0.1

Plug times

S

≥1000

interchangeability



≤0.2

tensile strength



N

≥50

Working Temp.

-40~75

Storage Temp.

-40~85



Paking details

image.png   image(fd38128f5b).png

      42*27*21cm                                                            57*43*46cm





2.Product Selling Point

1)Low insertion loss, and High reliability

2)High return loss and Good repeatability

3)High strength of pull and push

4)Wide wavelength range



3.Partner


4.Application Scenario

1) LAN, WAN and Metro Networks

2) FTTH project & FTTX Deployments

3) CATV System

4) GPON, EPON

5) Fiber Optic Test Equipment

6) Data-base Transmit Broadband Net




5.FAQ

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks.



Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products.



Q5: What about delivery time??

A: 1) Samples: within one week. 2) Goods: 15-20 days usually.
